Hardwall Modular Cleanroom
Terra Universal designs, builds, and installs cleanrooms tailored to a wide range of applications. Each hardwall cleanroom is specifically engineered to meet unique user requirements, including ISO rating and environmental control, for industries such as medical devices, semiconductors, defense, pharmaceuticals, biotechnology, and aerospace. As a pioneer in the critical environment industry, Terra Universal has developed and manufactured innovative solutions for over 45 years. With advanced automated fabrication equipment and a well-stocked inventory of raw materials, Terra delivers hardwall cleanrooms in any design, size, or complexity with industry-leading build times. Over the past six years, Terra has installed 2,132 cleanroom projects worldwide, many of which feature robust hardwall designs.

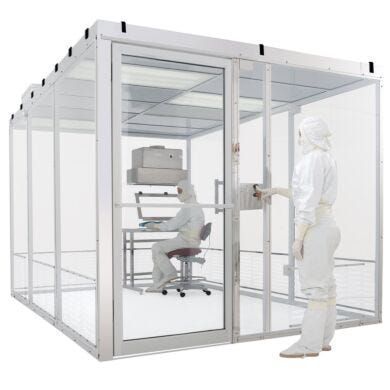

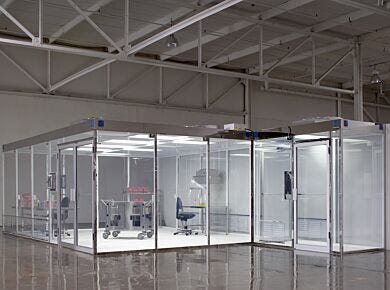

ValuLine Pre-Fabricated Hardwall Modular Cleanrooms
Available Certified ISO Grade™ Designs
ISO Ratings: ISO 7, ISO 8
The room configurations below are staged for rapid shipment. A crew of two or three can assemble a room in 2 – 3 days.
Click on the cleanroom below that best fits for full description, specification and 3-D, 360° model for your specific room with doors, lights and optional filters.
You may customize rooms to different ISO levels and configurations; please call, e-mail or click chat.
See 3-D, 360° sample model of complete large room
- ISO Rated Air Cleanliness: TBD
- Frame Material: Powder-Coated Steel
- Width: 8', 10', 12', 6', 16'
- Depth: 14', 16', 18', 20', 22', 24', 12', 10', 8', 6'
- Height: 8'
- Panel Material: Clear Acrylic, Static-Dissipative PVC
BioSafe® Modular Cleanrooms with Wall Panel System
Fully integrated and prefabricated cleanrooms feature demountable uPVC sandwich wall panels with aluminum honeycomb or foam cores.
- Turnkey UL-listed cleanroom system streamlines building permitting and optimizes installation and certification.
- Design compliant with ISO-14644, cGMP, GLP, ASTM, and IEST requirements.
- Solutions are not limited by overhead clearance, size, shape, or pathways within the site.
- Time to completion is faster by utilizing prefabricated, pre-engineered cleanroom wall panels and components.
- Certified ISO Grade Design: ISO 5
- ISO Rated Air Cleanliness: TBD
- Width: 8', 10', 12'
- Depth: 8', 10', 12'
- Height: 8'
BioSafe® Wall Panel System
Prefabricated and demountable uPVC sandwich wall panels with aluminum honeycomb or foam cores.
- Design compliant with: ISO-14644, cGMP, GLP, ASTM and IEST requirements
- Solutions are not limited by overhead clearance, size, shape, or pathways within the site.
- Wall panels are constructed from durable, GMP-rated materials resistant to scratches, corrosion, and common disinfectants such as Spor-Klenz, quaternary and phenolic cleaners.
- UL: N
- Type: Wall System
- Fire-Rating: None
- Certified ISO Grade Design: ISO 5
- Panel Material: uPVC-Laminated Steel, 304 Stainless Steel
- Core Material: Aluminum Honeycomb, EPS Rigid Foam

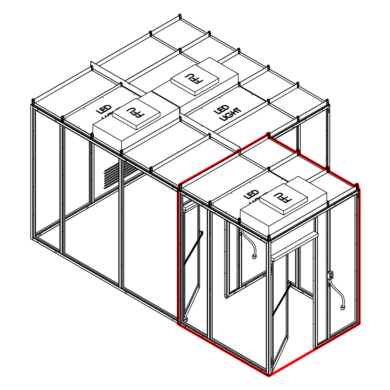

Gowning Room Add-On for ValuLine™ Hardwall Modular Cleanrooms
Available Certified ISO Grade™ Designs: ISO 8
- Compatible with: ValuLine™ Hardwall Modular Cleanrooms
- Available in: acrylic or static-dissipative PVC
- Frame Material: Powder-Coated Steel
- Width: 6', 8'
- Depth: 6', 8'
- Height: 8'
- Panel Material: Static-Dissipative PVC, Clear Acrylic

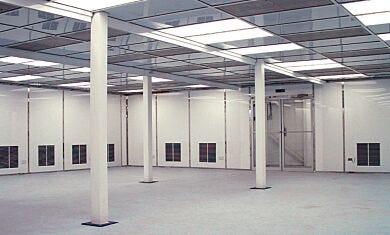

Custom Hardwall Modular Cleanroom
Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
- ISO Rated Air Cleanliness: TBD
- Frame Material: Powder-Coated Steel, 304 Stainless Steel
- Panel Material: White Polypropylene, CDPVC, Clear Acrylic, Polycarbonate, Polypropylene, Tempered Glass, Static-Dissipative PVC
- Wall Type: Center-Mount, Interior Flush-Mount

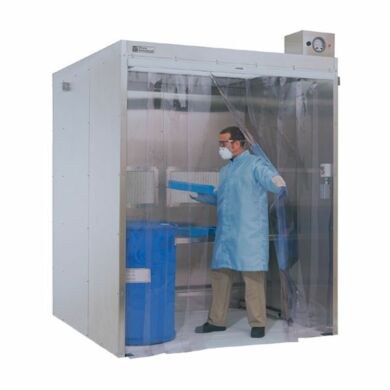

Custom Powder Containment Modular Cleanrooms
Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8
- ISO Rated Air Cleanliness: TBD
- Frame Material: Stainless Steel, Powder-Coated Steel, 304 or 316 Stainless Steel
- Panel Material: 304 Stainless Steel, Powder-Coated Steel, 304 or 316 Stainless Steel
- Wall Type: Hardwall

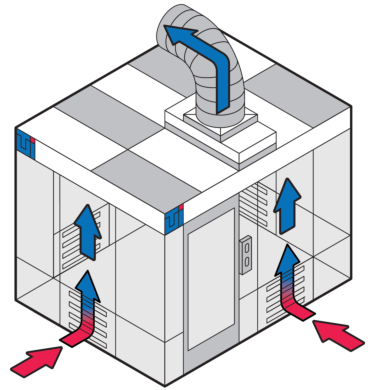

Negative Pressure, Patient Isolation Cleanrooms
Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Maintain negative pressure to ensure safe patient isolation and complete infection control
- Reverse-flow filter fan units include duct collar for facility exhaust connection
- Built to project-specific dimensions and ratings
- Optional accessories include UV germicidal lights, casters for room mobility and LED lights
- Designed for: exam rooms, patient waiting areas, home isolation, package quarantine, and workplace isolation
- Application: Vertical Flow, Horizontal Flow
- ISO Rated Air Cleanliness: TBD
- Air Flow: Vertical, Horizontal
Custom Explosion-Proof Hardwall Cleanroom
Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Quick Disconnect couplings speed up conduit installation
- Potted fittings in the conduit array isolate each of the components from the rest of the system
- Grounded Static-dissipative PVC helps prevent charge build-up that can cause sparking
- Powder-coated steel support frame

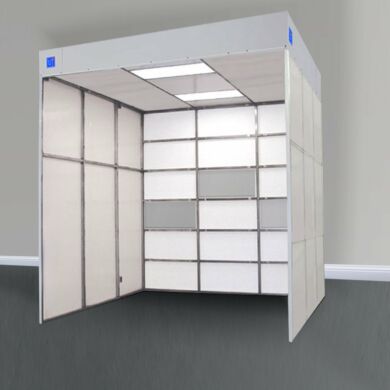

Custom Horizontal Laminar Flow Cleanrooms
Available Certified ISO Grade™ Designs: ISO 6, ISO 7, ISO 8
- Includes: HEPA-filtered fan unit(s), LED light, acrylic panels, steel frame and casters
- Hardwall acrylic panels are strong, affordable, and enclose work zone from ambient environment
- Units ship disassembled to reduce transportation costs and optimize product storage or relocation
- Voltage: 120 V
- Certified ISO Grade Design: ISO 6
- ISO Rated Air Cleanliness: ISO 5
- Airflow Direction: Horizontal, Vertical
- Inside Width: 96", 72", 48"
- Inside Depth: 29.5"
- Inside Height: 71"

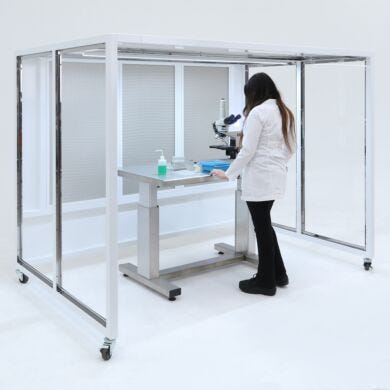

Hardwall CleanBooth™ Laminar Flow Stations
Available Certified ISO Grade™ Designs: ISO 6, ISO 7, ISO 8
- Includes: HEPA-filtered fan unit(s), LED light, acrylic panels, steel frame and casters
- Hardwall acrylic panels are strong, affordable, and enclose work zone from ambient environment
- Units ship disassembled to reduce transportation costs and optimize product storage or relocation
- Voltage: 120 V
- Certified ISO Grade Design: ISO 6
- ISO Rated Air Cleanliness: ISO 5
- Airflow Direction: Horizontal, Vertical
- Inside Width: 96", 72", 48"
- Inside Depth: 29.5"
- Inside Height: 71"
Custom Insulated Hardwall Modular Cleanrooms
Available ISO Rated Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Insulated panels support temperature set points with tight tolerances
- Configure as a refrigerated cold room, an incubator room or an acoustic sound-proof room
- Double-wall, insulated structure reduces cleanroom heating and cooling expenses
- Enhances humidity and temperature stability in environmentally critical processes
- Ideal for: long-term sample storage, cell cultivation or high-volume process equipment
- Application: Insulated
- ISO Rated Air Cleanliness: TBD
- Frame Material: Powder-Coated Steel
- Panel Material: Polypropylene, White Acrylic
Custom Fire-Retardant Hardwall Cleanroom; 304 Stainless Steel Panels
Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Stainless steel used for wall and ceiling panels
- Modifications to lights, FFUs, or other components must be specified by the customer
- Optional FM 4910-listed lens cover available for ceiling light fixtures
- Optional stainless steel replacements available for HEPA filter screens and door hardware
- Steel components maintain structural integrity far longer than aluminum under fire conditions

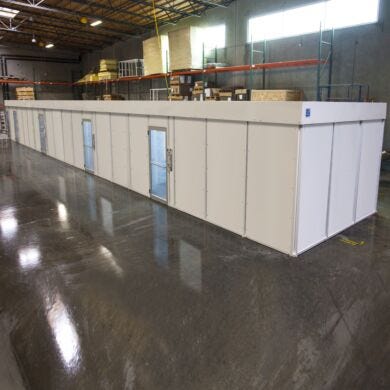

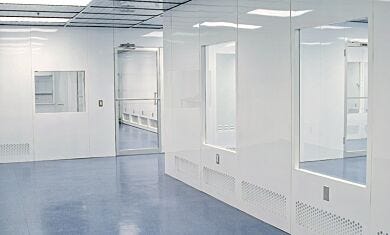

Custom Fire-Retardant Hardwall Cleanroom; Powder-Coated Steel Panels
Available Certified ISO Grade™ Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Powder-coated steel used for wall and ceiling panels
- Modifications to lights, FFUs, or other components must be specified by the customer
- Optional FM 4910-listed lens cover available for ceiling light fixtures
- Optional stainless steel replacements available for HEPA filter screens and door hardware
- Steel components maintain structural integrity far longer than aluminum under fire conditions
